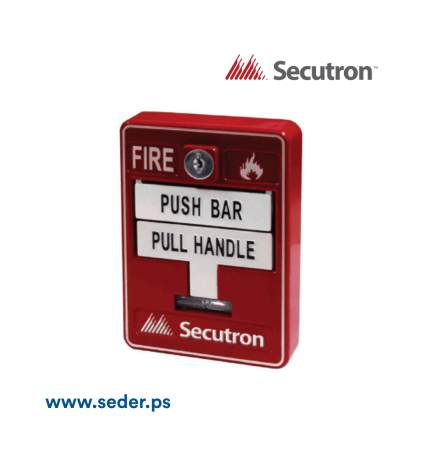

Secutron Intelligent Manual Station

Description

This high quality, die-cast metal intelligent fire alarm manual station is a dual action unit with key reset and a permanently attached addressable module.

The intelligent manual station has DIP switches which allow for address setting. Pulling the handle initiates the operation of the addressable module. The MRM-710IDU is available with CAT-30 keys and mounts on a standard single gang backbox, MRM-700 interior surface metal backbox, or MRM-700WP weather proof backbox.

Operation

The MRM-710IDU Dual Action Intelligent Manual Station is operated by pushing the bar labelled “PUSH BAR” and then pulling down the handle marked “PULL HANDLE”. The MRM-710IDU is reset by opening the station with the key, placing the handle in the normal upright position and re-locking the station.

Specifications

The manual station shall be Secutron’s MRM-710IDU. Operating instructions shall be in raised English lettering and the unit shall be constructed of high quality die-cast metal and finished in red enamel paint to provide quick identification. Pulling the handle shall initiate immediate operation of the intelligent addressable module.

All manual fire alarm stations shall be installed as per the specific requirements outlined in the UL codes, as well as all other applicable national or local codes. Final acceptance is subject to the local authority having jurisdiction.
