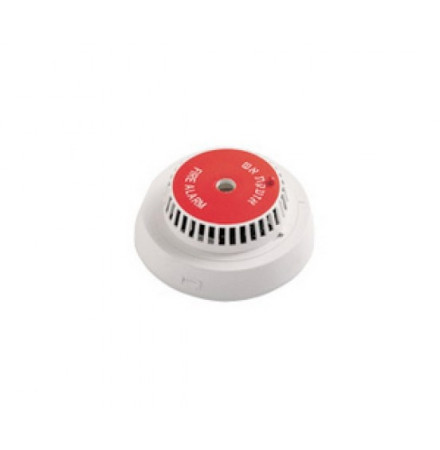

TIP-224A Analog Addressable Alarm Notification Sounder

المواصفات

DESCRIPTION


Telefire's TIP-224 is an analog addressable device that integrates an indoor horn and an addressable output card, eliminating the need for an output module installed in a separate box, therefore reducing material and labor cost. As an added benefit, the unit contains a high-brightness LED. The TIP-224 is compatible with the ADR-3000 Analog Addressable Control Panel.
The address of the TIP-224is programmed into the memory of the horn and can be assigned or changed by using the PROG-4000 programmer.
The horn contains an alarm LED that is viewable from 360°. This LED blinks when polled by the control panel, indicating normal operation. During an alarm THE TIP-224 will sound interrupted beeps and the LED will blink more rapidly and brightly than during normal operation.

Telefire
العلامة التجارية
متوفر
الحالة
Z4
رقم المنتج
TIP-224
الموديل
NA
المرجِع
مرفقات
Datasheet TIP-224
