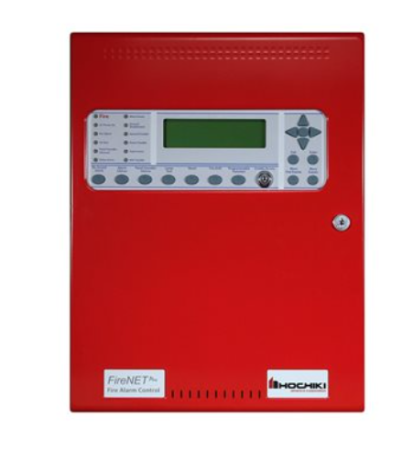

Hochiki FireNET Plus Intelligent Addressable, 1 Loop
• Digitized analog information processed using Hochiki’s advanced Digital Communication Protocol for fast and robust communication • Up to 127 sensors & modules, plus 127 analog sounder bases, for a total of 254 points possible per loop • Uses standard wire, no-shielded or twisted pair required on SLC loops • Optional dedicated cellular communicators, Pathway Pro and FireNET Comm 5G use serial data to transmit events. • Programmable sensitivity levels by device • Alarm verification feature • Automatic daily calibration & drift compensation routine • Large 8-line x 40-character LCD (320 char.) • 1 SLC (2nd SLC optional) • RS-485 bus for panel networking (option) • Built-in RS-232 interface for programming via a PC • 3 on board programmable Form C relays rated at 1 amp at 30VDC • 2 auxiliary power outputs, each rated 360mA at 24 VDC • Loop Explorer Windows® configuration utility • Auto-learn feature • 500 network wide software zones • Network capability of up to 64 panels (option) except non expandable model • Built in help and alarm information screens • 2 on-board Class B (style Y) NAC circuits rated at 2.3 amps each (special application) and 1.6 amps each (regulated continuous) • Gentex, System Sensor, Wheelock, and, Amseco NAC sync protocol built-in • Automatic day/night sensitivity modes
