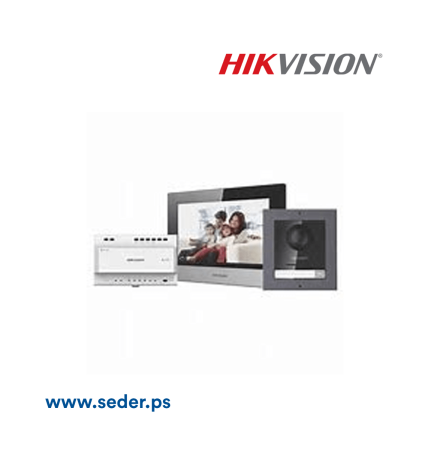

HikVision DS-KIS702 Two Wire Kit
2-wire digital IP video intercom kit for villa or house, only one call button
DS-KD8003-IME2/Surface x1
DS-KH6320-WTE2 x1
DS-KAD704 x1
DS-KAW30-2N x1
16GB TF card x1
Extended Application
Mobile ClientSupport
Indoor Call ElevatorSupport
IPCSupport
Door Station/Video Parameters
Camera2MP super definition camera
ResolutionMain stream: 1920 × 1080, (720p configurable); sub stream: 720 × 480
Night VisionSupport low light and IR light supplement mode
Backlight CompensationSupport
Digital Noise ReductionSupport
WDRTrue WDR
Field Of ViewHorizontal 180°, vertical 96°
Video Compression StandardH.264
StreamMain stream: 1080p@30fps, 720p@30fps (configurable); sub stream: D1
Motion DetectionSupport
Flash-Avoid Frequency50 Hz, 60 Hz
Door Station/Audio Parameters
Audio InputBuilt-in omnidirectional microphone
Audio OutputLoudspeaker, 20 cm sound effect > 80 db
Audio QualityNoise suppression and echo cancellation
Audio Compression StandardG.711 U
Audio Compression Rate64 Kbps
Audio IntercomFull-duplex two-way audio intercom
Door Station/Device Interfaces
RS-4851 (inter-module connection)
Alarm Input1
Door Station/General
Working Temperature-40 °C to 60 °C (-40 °F to 140 °F)
Working Humidity10% to 90%
InstallationWall mounting
Protection LevelIP 65
Button1
Power Input24 VDC two-wire power supply (< 16 W)
Door Station/System Parameters
ProcessorEmbedded microcontroller
Operation SystemEmbedded Linux operation system
Operation ModeOne touch key
Door Station/Tamper
Tamper1
Indoor Station/Display Parameters
Display Screen7-inch TFT LCD
Display Resolution1024 × 600
Operation MethodCapacitive touch
Indoor Station/Audio Parameters
Audio InputBuilt-in omnidirectional microphone
Audio OutputBuilt-in loudspeaker
Audio QualityNoise suppression and echo cancellation
VolumeLocal or software control
Audio Compression StandardG.711 U, G.711 A
Audio Compression Rate64 Kbps
Indoor Station/Device Interfaces
Network InterfaceTwo-wire interface
RS-4851
Alarm Input8 zones alarm input
Relay Output2
TF CardSupport, Max. 32 GB
Indoor Station/General
Power SupplyTwo-wire
Power Consumption≤ 6 W
Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
Working Humidity10% to 90%
Dimensions (W × H × D)200 mm × 140 mm × 15.1 mm (7.87" × 5.51" × 0.59")
Indoor Station/System Parameters
Operation SystemEmbedded Linux operation system
Processor Basic Frequency1 GHz
Memory128 MB
Flash16 MB
Indoor Station/Network Parameters
Wired NetworkTwo-wire network
Wireless NetworkWi-Fi 802.11b/g/n
ProtocolTCP/IP, SIP, RTSP
Video Audio Distributor/Interfaces
Network Interface1 RJ45
Two-Wire Interface4
Signal Indicator4
Power Indicator1
Reset1
Video Audio Distributor/General
Power SupplyTwo-wire mode
Power ConsumptionCH1 to CH3＜6 W, CH4＜8 W
Working Temperature-10 °C to +50 °C (14 °F to +122 °F)
Working Humidity10% to 90%
Digital Noise ReductionSupport
