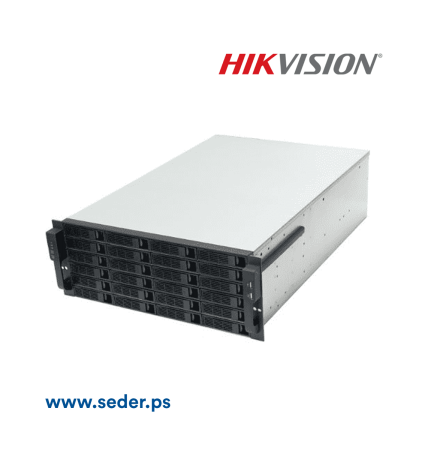

HikVision Storage System Rack-mount, Hot swap HDDs DS-A81016S

السعر عند الطلب

العلامة التجارية

HikVision | هايكفجن فلسطين

رقم المنتج

HV323123

المرجع

DS-A81016

Model

Model:DS-A81016S

Performance

Direct Streaming Mode:video(2Mpbs)+Picture:320-ch recording + playback

IPSAN:180-ch recording + playback

Controller

Processor:One-controller (64-bit multi-core processor)

Cache:4 GB ( extendable to 32 GB )

HDD

HDD Slot:16

Interface/Capacity:SATA/1TB,2TB,3TB,4TB,6TB,8TB

Hot-swapping:Supported

RAID:RAID0,1,3,5,6,10,50.VRAID,JBOD,Hot-spare

Interfaces

Alarm interface:1

Data network interface:3, 1000M Ethernet interface

Management network interface:1, 1000M Ethernet interface

MiniSAS interface:Supported

COM:1

USB3.0:2

VAG:None

HDMI:2

Network

Protocol:iSCSI,RTSP,ONVIF,PSIA

General

Power supply:Gold-metal redundant power supply

Comsumption ( with HDDS ):Working: ≤308W ( 967BTU with 16 HDDs)
Rated: ≤550W

Environment Temperature:Working: +5°C to +40°C
Storing：-20°C to +70°C

Environment humidity:Working: 20% to 80%RH (non-condensing/frozen)
Storing:5% to 90%RH (non-condensing/frozen)

Chassis:3U (19-inch height)

Dimensions (W x H x D):440 x 132 x 495 mm (17.3 x 5.2 x 19.5 in)

Weight (without HDDs):≤ 20 Kg (44.1 lb)
