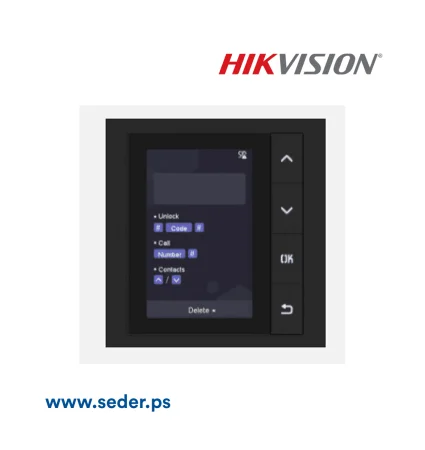

HIK Display Module DS-KD-DIS

KD8 Series Pro Modular Door Station

Modular door station Display module, needs mouting bracket

3.5 inch LCD screen, 4 buttons, backlight, IP65

Dial number display, pin code unlock, contact list display

Up to 2000 contacts can be added to the device

Stores and searches contact list

Multiple languages.

Specification

System Parameters

ProcessorEmbedded MCU Processor

Device Interfaces

Button4( Up, Down, OK, Back)

General

Power Consumption≤ 3 W

Working Temperature-20° C to +60° C(-4° F to 140° F)

Working Humidity10% to 95%

Input Voltage12VDC( From the other module)

Output Power12VDC( For the other module)

IP Protection LevelIP65

Memory64 MB

Dimensions98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33")
