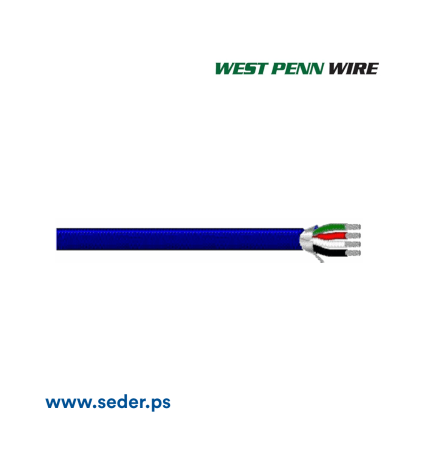

Western Wire Cable 4*22AWG Shielded
4x22# PVC Insulated and Jacketed Shielded LF Control Cable
Conductors Stranded 22# annealed tinned copper 7x0.25 mm nom. Insulation type PVC compound, rated at -30 to +80C. Insulation thickness 0.25 mm nom. Insulation OD 1.35 mm nom. Total number of conductors 4 Color code Black x Red x Green x White. Conductor arrangement The 4 conductors are twisted together. Core warp Polyester tape, providing 100% coverage. Drain wire Stranded 22# annealed tinned copper 7x0.25 mm nom. Overall shield Polyester-aluminum tape, foil face in, providing 100% coverage. Outer Jacket PVC compound, rated at -20 to +80C. Jacket thickness 0.70 mm nom. Overall Diameter 4.8 mm nom. Color Blue, RAL 5015. Surface Marking WESTERN WIRE AF104F40 4x22 AWG FOIL SHIELDED 60V CONTROL CABLE FR IEC 60332-1 UL 1581 VW-1 CE 2002/95/EC (RoHS) [Month, Year] [Batch Number] [Sequential Meter Mark] METER Notes The jacket is easily removable.
