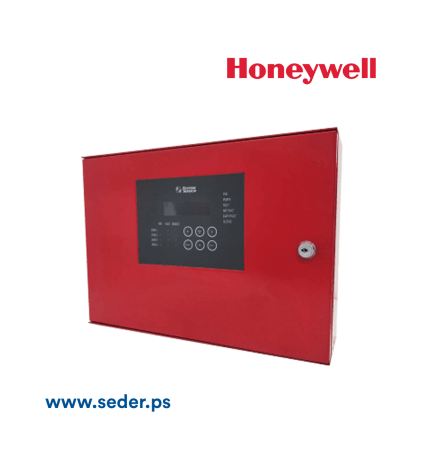

Honeywell SS-4ZEC Conventional Fire Alarm Control Panel 4 Zones

Mechanical Specifications
Dimensions (H X W X D)
250 X 290X 100 mm
Weight 3.5kgs Approx (No battery fitted)
Construction Cold Rlled Steel with powder coated finish with door lock
Cable Entry 08 Number x 20.50mm knockout

Electrical Specifications
Operating Voltage 230VAC; 50 Hz Alarm Load (Sounder) 0.5Amp (max) NAC output 0.5Amp (max)
Operating Temperature 0ºC – 49ºC/32ºF – 120ºF
Relative Humidity 5% to 95% Non-Condensing
Standby Batteries Minimum capacity 2 x 12 V 2.8Ah Maximum capacity 2 x 12 V 7 Ah
Detection Circuits 2, 4, zone, Max 2mA per Detector Class B Circuit
External Outputs Sounder Outputs: 18.5 to +28.0 Vdc, 0.5 Amp. (max) Auxiliary Output: 18.5 to +28.0 Vdc, 0.5 Amp. (max)
