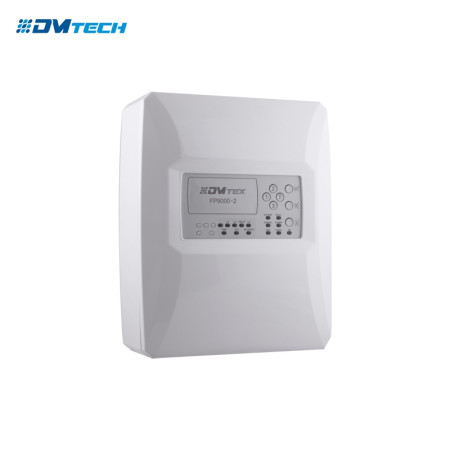

DMTECH Fire Alarm Control Panel 2-Zone

FUNCTIONAL FEATURES FP9000L-2/4/6/8:

•  EN 54-2 and EN 54-4 certified;
• Conventional fire panel;
• Compatible with all manufactured conventional detectors;
• Fire lines 2, 4, 6 or 8;
• Outputs – 4 relay-type embedded;
• Additional outputs / optional / – 2/4/6/8 number relay type, with the addition of a module M9000R – 2/4/6/8;

• Control lines and monitoring outputs for fault conditions (short circuit and interruption) and automatic reset;
• Light indication for Fire condition, Fault, Disable and Test;
• Ability to delay controllable outputs and general fire for a period of 0 to 7 min. after the state registration of fire;
• Built-in sounder for fire – one tonal, continuous with the possibility of exclusion;
• Status Test each fire alarm lines;
• Ability to disable any of fire alarm lines;

• Ability to disable controllable outputs;
• Interface for communication with external devices RS485 and networking / optional / with the addition of module M9000-485;
• Ability to GPRS, LAN communications and remote control and monitoring / optional /;

Base settings:

Dimensions – 305 x 250 x 95 mm
Weight without batteries – 1,3 kg
