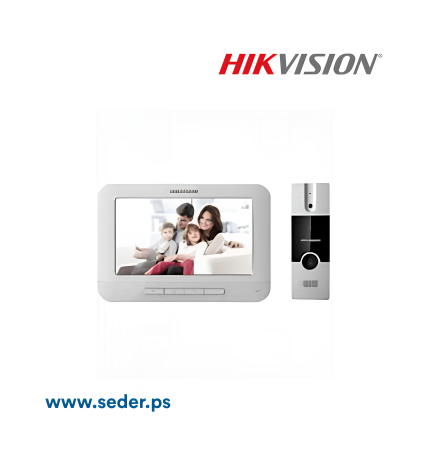

HikVision Villa Analog Kit DS-KIS202T

Analog Kit for villa or house, only one call button

(Kit including DS-KB2411T-IM and DS-KH2220, 5-meter 4-wire cable )

Specification

Door Station/Video Parameters

Resolution1920 × 1080

Lens1/2.7" CMOS

FOVHorizontal: 66.2°，Vertical: 37.2°

Door Station/Audio Parameters

Audio InputBuilt-in omnidirectional microphone

Audio OutputBuilt-in loudspeaker

Door Station/Device Interfaces

I/O Output1 relay output

Four-Wire1 four-wire interface (1-ch video input, 1-ch audio input/output, 1-ch power,supply, 1-ch grounding)

Door Station/General

Power Supply12 VDC

Power ConsumptionMax. 5W

Working Temperature-10° C to + 55° C (14° F to 131° F)

Working Humidity10% to 90%

Dimensions128 mm × 42 mm × 24.8 mm

Indoor Station/Display Parameters

Operation MethodPhysical button

Type7-inch colorful TFT LCD

Resolution800 × 480

Indoor Station/Audio Parameters

Audio InputBuilt-in omnidirectional microphone

Audio OutputBuilt-in loudspeaker

Audio QualityNoise suppression and echo cancellation

Indoor Station/General

Power Supply12 VDC

Power Consumption≤5 W

Working Temperature-10° C to + 55° C (14° F to 131° F)

Working Humidity10% to 90%

Dimensions (W × H × D)195.8 mm × 132.8 mm × 18.39 mm (7.7" × 5.2" ×0.7")
