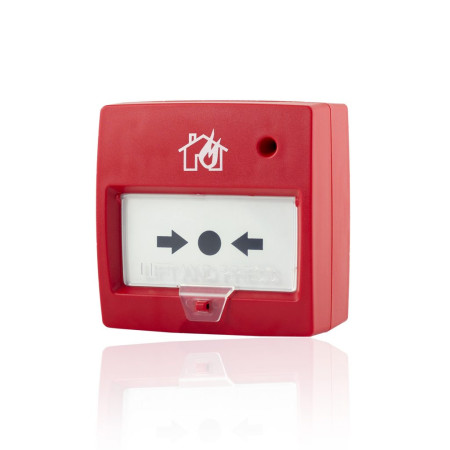

DMtech D9000 MCP Manual Call Point

The D9000 MCP manual call point is designed for indoor operation in fire detection systems and meets the requirements of European Standard EN54-11;

The fire detector is designed for easy installation and maintenance. There are built-in channels in the base for inserting cables in three directions – left, right, and top. The key to open the fire detector and restore the removed element is the same and is attached to the base. D9000 The MCP has a protective transparent cover and a possibility of mounting a seal. Upon activation, except the graphic indication of the operating element, for visibility from a distance is activated and red LED.

Technical characteristics

Supply voltage                                              (9-30) V DC

Resistance                                                      500Ω / (1 kΩ in broken PCB bridge)

Current at 24V                                               46mA/ (22mAin broken PCB bridge)

LED indicator                                                red

Protective cover                                            transparent

Cross section of connecting cables           0,4÷1,5 mm2

operating temperature range                     minus10ºС ÷ 50ºС

Humidity                                                        (93 ± 3)% at40ºС

Degree of protection                                    IP 40

Dimensions                                                    (90 х 90 х 44) mm

Weight                                                             0,120 kg

Material                                                           ABS plastic
