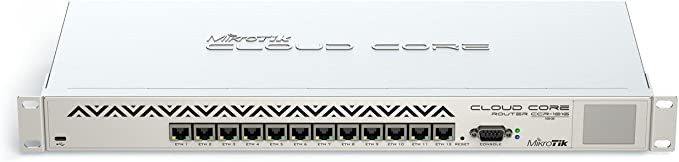

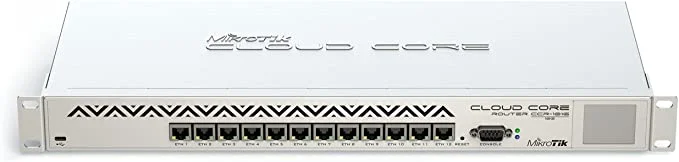

CCR1016-12G Routerboard-Cloud

MikroTik Cloud Core Router CCR-1016-12G - Revision 2
CCR1016-12G is an industrial grade router with a cutting edge 16 core CPU. If you need many millions of packets per second - Cloud Core Router is your best choice. Unit is equipped with 12 x Gigabit Ethernet ports and color touchscreen LCD.

The new r2 version has onboard 2GB of RAM, full size USB slot and dual PSU for redundancy!

-

shipped with:

Rack ears
2x IEC Cords (Kaltgerätekabel)
K-57 Kit (Schraubenset)
-

Links:

brochure: https://i.mt.lv/cdn/product_files/ccr1016-12G_210511.pdf
guide: https://help.mikrotik.com/docs/display/QG/Quick+Guide+G1-b
manual: https://help.mikrotik.com/docs/display/UM/CCR1016-12G
routerboot firmware: https://i.mt.lv/cdn/rb_bootloaders/tilegx_3.41.fwf
diagramm r2: https://i.mt.lv/cdn/product_files/CCR1016-12Gr2_200453.png
diagramm: https://i.mt.lv/cdn/product_files/CCR1016-12G-160219130439_160239.png
wiki: https://wiki.mikrotik.com/wiki/Manual:TOC
CE: https://i.mt.lv/cdn/product_files/ID043_CCR1016-12G_CCR1016-12S-1S_DOC_210730.pdf
-

Specifications
Details
Product code CCR1016-12G
Architecture TILE
CPU TLR4-01680
CPU core count 16
CPU nominal frequency 1.2 GHz
Dimensions 443 x 193 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 2 GB
Storage size 512 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -20°C to 60°C
IPsec hardware acceleration Yes

Powering
Details
Number of AC inputs 2
AC input range 100-240
Max power consumption 42 W
Max power consumption without attachments 37 W
FAN count 2
Ethernet
Details
10/100/1000 Ethernet ports 12
Peripherals
Details
Serial console port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1
Other
Details
CPU temperature monitor Yes
PCB temperature monitor Yes
Mode button Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
