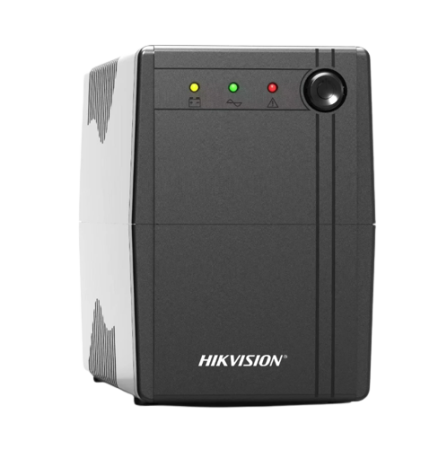

HIKVISION UPS DS-UPS1000

• Parameters
• Protection Method Overload, discharge, and overcharge protection
• Operating Temperature And Humidity 0 °C to 40 °C (32 °F to 104 °F). Humidity 30% to 90% (non-condensing)
• Weight Approx. 5.4 kg (11.9 lb)
• Dimension 274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47")
• LED Indicator Working Mode (AC Mode): Solid green

Charging Mode (DC Mode): Solid red

Overloading Mode: Flashing yellow

Alarm Charging Mode (DC mode): Sounding every 10 seconds

Low Battery: Sounding every second

Overloading Mode: Sounding every 0.5 seconds

Fault: Continuously sounding

• Storage Conditions -10 °C to 50 °C (14 °F to 122 °F). Humidity 20% to 95% (non-condensing)
• Capacity 1000 VA / 600 W
• Input Voltage Range 220 VAC to 240 VAC
• Input Frequency Range 50/60 Hz
• AC Voltage Regulation (Batt. Mode) 220 VAC to 240 VAC
• Frequency Range (Batt. Mode) 50/60 Hz ± 0.5 Hz
• Transfer Time DC to AC ≤ 10 ms; AC to DC ≤ 10 ms
• Waveform (Batt. Mode)Charging Mode (DC Mode): PWM
•
• POWER
• Battery 12 V/9 Ah × 1
• Rechargeable Typical recharge time: 10 to 16 hours
