التحكم ب باب الكراج و المصاعد عن طريق تطبيق على الهاتف

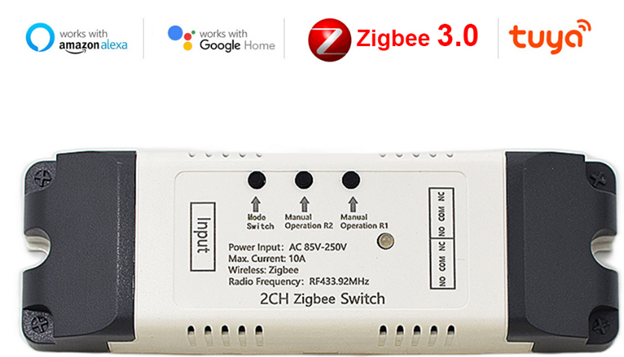

The switch is a micro/self-locking smart switch supporting ZigBee

Compatible with different hubs such as SONOFF Bridge, Amazon Hub, Samsung SmartThings Hub and Philips Hue Hub, tuya smart Bridge.

The ZigBee3.0 protocol has obtained the switch and ZigBee. Quickly paired bridges.

The fire-retardant and flame-retardant shell ensures that the switch is safer to use in your home.

In addition, AES-128 encryption can ensure that the security is extended to the privacy of the data device without worrying about the privacy of the device.

It can be used as a Zigbee router to help transmit ZigBee signals to ensure a stable connection when using multiple Zigbee devices in your house.

Three Working Modes

1.Self-locking :
each channel could be switched on/off seperately.You can turn on/turn off all channel at the same time.

2.Interlocking mode :
Switch on any channel , other channels will be switched off automatically .

3.Inching mode :
Switch on one channel,the channel will be automatically closed after 0.5seconds .Other channel is same as the channel.
The inching time can't be changed.

Parameters:

lnput voltage: 85-250V
Max.Current:2200W/10A
wireless Standard:Zigbee
Working temperature: -20℃~70℃
Size: 69*41*20mm

Checklist before using the device

You need to have a Zigbee gateway.
Try to be close to the Zigbee gateway when pairing.

Timer

You could set a time schedule to turn on/turn off the device
