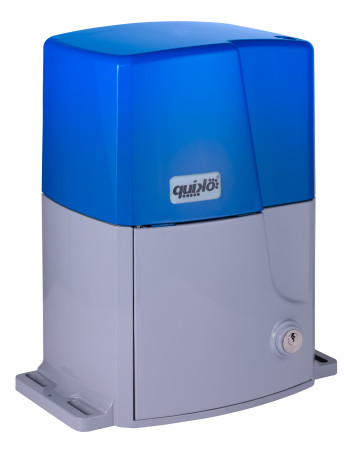

ماتور بوابة سحاب صناعي نوع كويكو ايطالي لغاية 2500 كغم

The QK-E2500KIT is an automation kit for heavy sliding gates up to 2500 kg with intensive use cycle (90%). The ERCOLE range is designed for industrial applications, for very heavy sliding gates. The mechanism is made of the highest quality materials, and the lubrication system of the internal mechanism, with oil, ensures smooth and efficient operation for a long period of time. The engine locks automatically keeping the gate closed, which can be manually unlocked in case of emergency. The main safety element of this range is represented by the internal mechanical clutch that has the role of stopping the gate in case of an accident, avoiding crushing people or objects.

FEATURES

• Model designed for very heavy
sliding gates • Maximum carrying weight 2500 kg
• Robust design, easy to install
• Integrated obstacle sensor, mechanical clutch • Integrated
travel limiters • Open/close speed of 12 meters per minute • Durability and strength thanks to quality materials.

• Ultra-high-strength steel mechanism, oil
lubrication• Power supply 230Vac, intensive use cycle 90%
• Water and dust resistant (IP54)

SPECIFICATIONS

• Motor supply: 230Vac, 50/60Hz
• Accessory supply: 24Vdc (from control panel)
• Absorbed current: 2.4 A
• Power consumption: 650 W
• Capacitor: 25 μF • Degree of protection: IP54 • Opening time: 12 meters/ minute • Maximum gate weight: 2500 kg
• Thermal protection: 130 °C • Working cycle: 90%
• Operating temperature: -30°C ~ +70°C

• Insulation class: F
