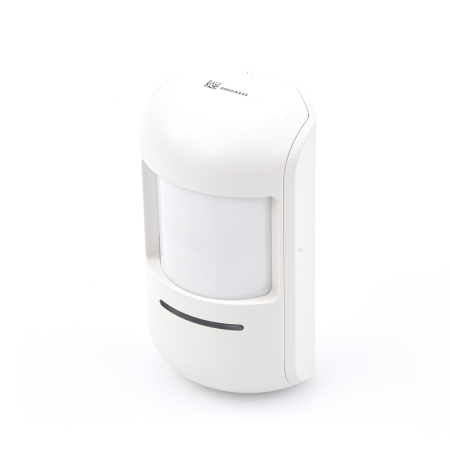

PIMA PIR PET Wireless Detector DPP 143

DPS (Standard) and DPP (Pet Immune) detectors are wireless PIR (passive infrared) motion detectors with FastLink technology, designed for FORCE series alarm systems. FastLink communication is encrypted using 128-bit AES encryption to provide a high level of security. To use the DPS / DPP detectors, the prior installation of a wireless receiver is required.

The two detectors work based on digital processing and use an advanced motion detection algorithm. DPS and DPP can be used in apartments, private homes, and offices.

The DPP has immunity to pets and animals weighing up to 25 kilograms.

The DPS and DPP have an elegant design. When motion is detected, the detectors transmit an alarm signal to the control panel.

The detectors have a tamper switch that alerts when your cabinet opens or when the detector is removed from the wall.

The DPS and DPP transmit a monitoring event every 15 minutes and also when replacing the battery. The two detectors alert about the low battery condition. For information on how to register (enroll) the device, refer to the alarm system installation guide.

Technical specifications

- Frequencies (MHz):

- DPS / DPP143: 433.92

- Battery: 1X CR123A, 3.0VDC, Lithium

- Estimated battery life: Up to 5 years (in typical use)

- Dimensions: 11 X 5.5 X 5.5cm

- Weight: 110gr

- Complies with CE regulations

- Operating temperatures: from -10 to +55 ° C

- Humidity (Max.): 93% R.H., No condensation
