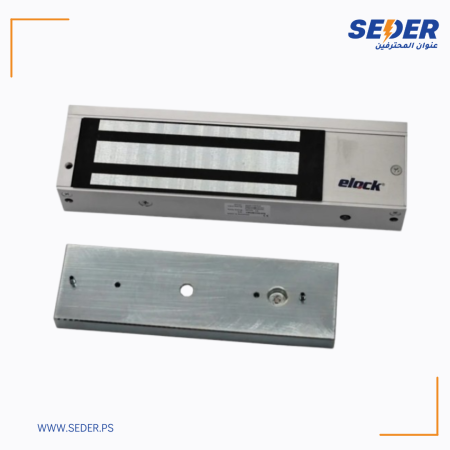

قفل مغناطيسي لغاية 550 كغم لأنظمة الدخول و الخروج

Holding Force : Up to 1200lbs
Dual Voltage 12 & 24VDC
Current Drawn : 500mA (12VDC) / 250mA (24VDC)
MOV Surge Current Protection
Lock Type: Fail-Safe Type
Push-off Button On Armature For Instant Release
Door status sensor indicates the door is in an open or closed status.
Door status output : SPDT rated 0.2A/12VDC
Monitored version, Built-in
Bond sensor Indicate the locked & unlocked status with visible LED indicator.
Bond sensor output : SPDT rated 0.5A/125VAC; 1A/24VDC
Push-off button on armature for instant release
“L” Bracket and “Z” Brackets Available for Easy Mounting
Dimension : Magnet : 265(L) x 66(W) x 40(D) mm; Armature Plate : 200(L) x 60(W) x 17(D) mm
Optional Accessories: EL-BK-L1200 L Bracket; EL-BK-Z1200 ZL
Bracket Product Code : ELOCK-1200LD

للتعرف على طرق ربط هذا القفل مع  انظمة الدخول والخروج اضغط هنا
