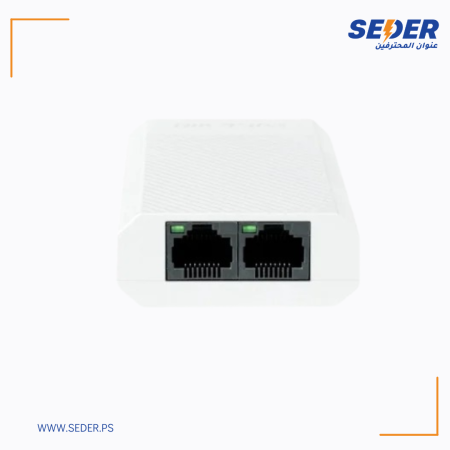

DS-3E0103DP-E/R 100 Mbps PoE Repeater

DS-3E0103DP-E/R provides one 10/100 Mbps PoE IN port and two 10/100 Mbps PoE OUT ports, with up to 30 W output power for a single port and up to 30 W output power for the whole device. Capable of intelligently identifying powered devices, DS-3E0103DP-E/R is plug and play, and simple in use. It is an ideal choice for setting up cost-effective PoE networks in hotels, campuses, factory dormitories, as well as small- and medium-sized enterprises.  1 × 10/100 Mbps PoE IN port and 2 × 10/100 Mbps PoE OUT port  Compliant with IEEE 802.3af/at standard     Up to 30 W PoE output power for the whole device PoE extension for longer transmission and power supply distance Plug and play, requiring no configuration Desktop installation  Specification General Shell Net Weight Plastic material, fan-free design 0.046 kg (0.101 lb) Dimensions (W × H × D) Operating Temperature 79.0 mm × 22.0 mm × 53.0 mm (3.11'' × 0.87'' × 2.09'') 0 °C to 40 °C (32 °F to 104 °F) Storage Temperature Operating Humidity -40 °C to 85 °C (-40 °F to 185 °F) 5% to 95% (no condensation) Relative Humidity Max. Power Consumption ≤ 0.92 W 5% to 95% (no condensation) 1.2 W Power Consumption in Idle Installation Mode Surge Protection Network Parameters Desk-Mounted 2 kV Ports MAC Address Table 1 × 10/100 Mbps PoE IN port and 2 × 10/100 Mbps PoE OUT port 2 K Switching Capacity Packet Forwarding Rate 0.6 Gbps 0.45 Mpps Internal Cache 0.77 Mbits PoE Power Supply PoE Standard PoE Port IEEE 802.3af,IEEE 802.3at PoE: Ports 1 to 3 Max. Port Power PoE Power Budget Approval 30 W 30 W EMC CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) Safety Chemistry UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2029) CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018)  Available Model DS-3E0103DP-E/R
