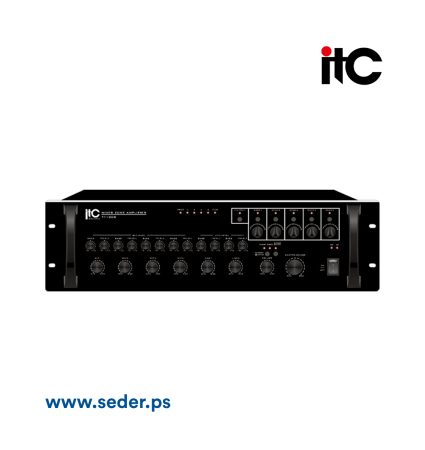

ITC TI-120 Mixer Amplifier (with phone jack mic input) 120W 5 Zone

Features
* Mixer amplifier for paging and background music system.

* Rated power from 120W. * 2U rack mount design.

* 70V, 100V and low impedance 4-16 speaker output. Ω

* Three Mic inputs by phone jack type.

* Mic 1 with VOX priority and VOX level on front panel.

* Mic 2-3 by phone jack on rear panel.

* Two Aux Inputs and 2 line inputs for spare use.

* One EMC priority input.

* EMC has priority over all inputs except MIC1.

* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control.

* Short circuit, overload and high temp protection.

Descriptions

The basic public address mixer amplifiers have rated power ratings from 120W. They are 3 microphone inputs, 2 aux inputs and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16 speaker outputs are provided. Extensive protection for short-circuit, overload Ω and high temp.
