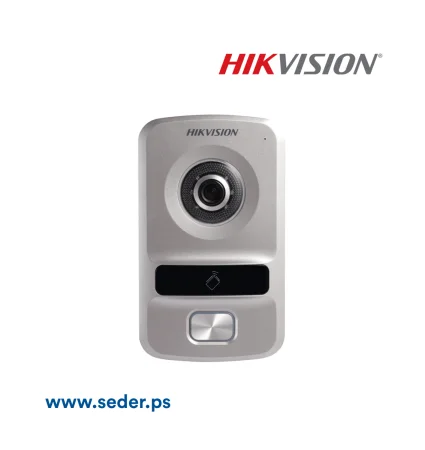

Water Proof Plastic Villa Door Station DS-KV8102-IP
System Parameters
Processor:High-Performance Embedded SOC Processor
Operation System:Embedded Linux Operation System
Video Parameters
Camera:CMOS Low Illumination 1.3 MP HD Colorful Camera
Video Compression Standard:H.264
Resolution:1280 x 720
Video frame rate:25 fps
Audio Parameters
Audio Input:Built-in Omnidirectional Microphone
Audio Output:Built-in Loudspeaker
Audio Compression Standard:G.711 U
Audio Compression Rate:64 Kbps
Audio Quality:Noise Suppression and Echo Cancellation
Network Parameters
Ethernet:10/100 Mbps Self-Adaptive Ethernet
Network Protocol:TCP/IP, RTSP
Access Control Parameters
Internal Card Reader:Built-in IC Card Reader
Exit button:Exit Button for Opening the Door
Door Magnetic Detection:Detects Door Magnetic Status
Light Supplement
Light Supplement Mode:Visible Light Supplement
Alarm Parameters
Alarm Input:Door Magnetic Alarm, Tampering Alarm
Device Interfaces
Network Interface:1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
RS-485:1 RS-485 Half-Duplex Port
I/O Input:4
I/O Output:1
General
Material:Plastic
Power Supply:12 VDC/24 VDC, Power Over Network Cable (DS-KAD606, DS-KAD612)
Power Consumption:≤12 W
Certification:FCC, IC, CE, C-TICK, ROHS, REACH, WEEE
Working Temperature:-40° C to +60° C (-40° F to 140° F)
Working Humidity:10% to 90%
IP Protection Level:IP65
Dimensions(L × W × H):164 mm × 97 mm × 54.4 mm (6.46" × 3.82" × 2.14")
