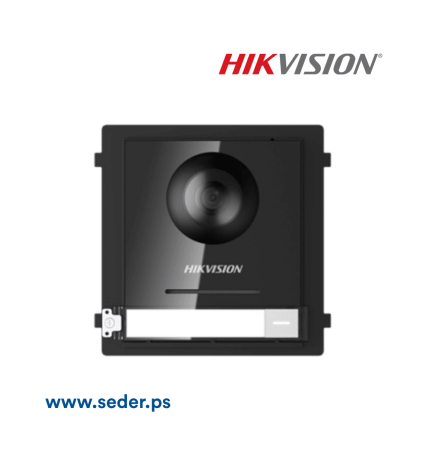

HikVision KD8 Series Pro Modular Door Station DS-KD8003-IME1 الوحدة الخارجية

Modular door station Main unit, needs mouting bracket

2MP HD Colorful Camera, Fish eye, IR Supplement

1 Call physical Button, 2 lock relays, 4-ch alarm input

IP65, 12 VDC or standard POE

Video intercom to indoor station and master station

Alarm Parameters

Alarm InputTampering Alarm

Network Parameters

Ethernet10/100 Mbps Self-Adaptive Ethernet

Network ProtocolTCP/IP, RTSP

Audio Parameters

Audio InputBuilt-in Omnidirectional Microphone

Audio OutputBuilt-in Loudspeaker(More than 85 dB within 20 cm )

Audio Compression StandardG.711 U

Audio Compression Rate64 Kbps

Audio QualityNoise Suppression and Echo Cancellation

General

Power Supply12 VDC/PoE ( IEEE 802.3af)

Power Consumption≤10 W

Working Temperature-40° C to +55° C (-40° F to 131° F)

Working Humidity10% to 95%

IP Protection LevelIP65

Dimensions(L × W × H)98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73")

Video Parameters

Video Compression StandardH.264

ResolutionMain Stream: 1920 × 1080,Sub Stream: 720 × 480

CameraLow Illumination 2 MP HD IR Camera

Device Interfaces

I/O Input4

I/O Output2

System Parameters

ProcessorEmbedded MCU Processor

Operation SystemEmbedded Linux Operation System

Light Supplement
