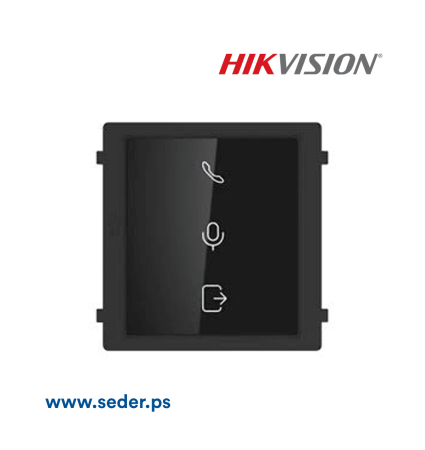

HikVision Modular door station Indicator module DS-KD-IN

Modular door station Indicator module, needs mouting bracket, IP65, Backlight

Indicates the device status: Calling, opening door and two-way audio

Easy to and extend

System Parameters

ProcessorEmbedded MCU Processor

General

Power Supply12 VDC (powered by the other module)

Power Consumption≤ 2 W

Working Temperature-40° C to +55° C(-40° F to 131° F)

Working Humidity10% to 95%

Output Power12 VDC (powered for the other module)

Weight326 g (with packaging) 165 g (without packaging)

IP Protection LevelIP65

Dimensions98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")

InstallationFlush mounting, surface mounting

Device Interfaces

Module Connecting2 (1 input, 1 output)

Debug1
