قارئ كرت 13.56 ميغا هيرتز خاص بانتركم هايكفجن

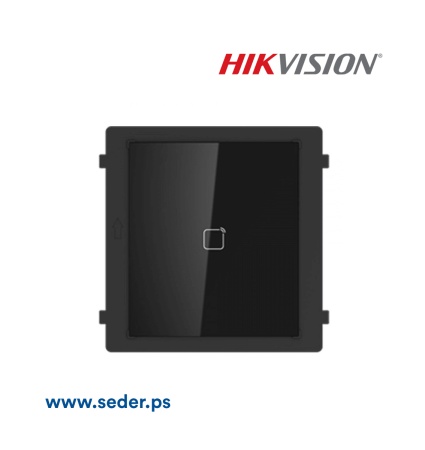

Modular door station Mifare 1 card reader module, 13.56MHz, needs mouting bracket

Backlight compensation, IP65

Unlock door via swiping card, Supports issuing cards

Easy to and extend

System Parameters

ProcessorEmbedded MCU Processor

General

Power Supply12 VDC (powered by the other module)

Power Consumption≤ 2 W

Working Temperature-40° C to +55° C(-40° F to 131° F)

Working Humidity10% to 95%

Output Power12 VDC (powered for the other module)

Weight421 g (with packaging) 160 g (without packaging)

IP Protection LevelIP65

Dimensions98.5 mm × 100 mm × 33.7 mm (3.87" × 3.95" × 1.33")

InstallationFlush mounting, surface mounting

Access Control Parameters

Internal Card ReaderBuilt-in Card Reader

Device Interfaces

Module Connecting2 (1 input, 1 output)
