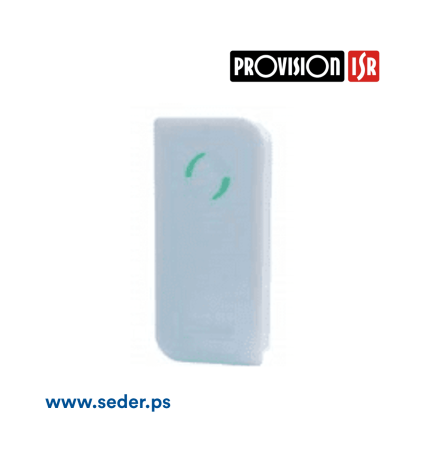

ProVision Independent external proximity reader with a sign - white CRS1-W

User Capacity: 2000

Operating Voltage: 9~18V DC

Idle Current: < 40mA

Proximity Card Reader: EM, 125KHz Industry Proximity Card

Read Card Range: 3-6cm Relay Output, Exit Button

Wiring Connections:

Relay: NO / NC / COM

Adjustable Output Time: 1-99 Seconds (5 seconds default)

Lock Output Load: 2 Amp Maximum

Environment: Meets IP66

Operating Temperature: -40°C ~60°C (-40°F ~140°F)

Operating Humidity: 20%RH - 98%RH

Physical: ABS Shell, White Color

Dimensions: 103mm (L) × 48mm (W) × 20mm (H)

Weight: 150g
