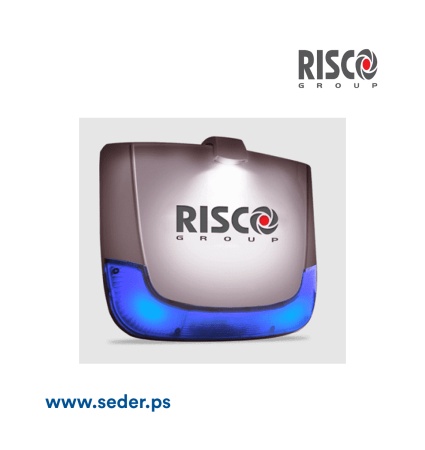

RISCO Lumin8 Sounder Two Piezo + Blue Light

Features

Twin piezo sounders

Encapsulated PCB

Locking hinge and screwdriver holder acts as a second pair of

hands during installation

Audible setting confirmation

Selectable sound options

Remote and local Engineer mode

Protection from power supply inverted connection

Cover & wall tampers

Technical Specifications

Input DC Power: 13.0 - 14.2 VDC

Standby current consumption: 23mA

Maximum operating current (Sounder + Strobe):460mA

Sounder current: 450mA

Sounder current (Quiet Mode): 180mA

Strobe current :10mA

Sounder level: 114 dBA at 1m

Housing material: Polycarbonate with UV protection

Tamper: Wall and cover

Back-up battery (rechargeable): Ni-MH 8.4V, 280mA/h

Ingress and impact protection: IP65, IK08

Operating Temperature: -25°C to 60°C

Humidity: 95% maximum

Dimensions (L x W x H): 74mm x 273mm x 230mm
