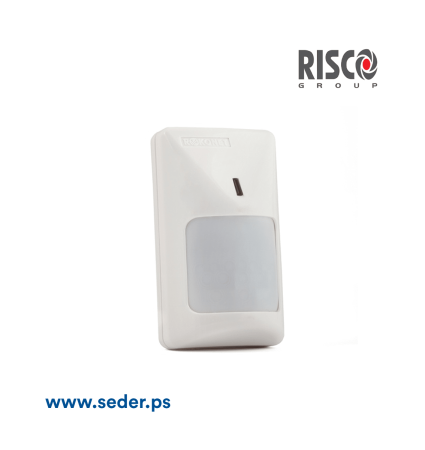

Risco Comet PIR 12m (Motion Detector)

Features

Coverage 12m x 12m (40' x 40')

Temperature compensation

RF immunity - 20V/m

Easy installation

Selectable pulse count (1,2,3)

White light protection

LED optical prism

Compact design for cost effective residential installations

Technical Specifications

Coverage at 2.4 m (7’10”) mounting height: 12m x 12m (40’ x 40’)

Operating voltage: 9 to 16V

Current consumption: 12mA at 12V

Alarm contact: 50mA, 24C, N.C

Tamper contact: 100mA, 24V, N.C

Alarm time: 2.2 seconds minimum

Pulse count selection: 1,2 or 3 pulse count

Temperature compensation: Automatic, thermistor controlled

Optical filtering: White light protection, pigmented lens

RF immunity: 20V/m from 10 MHz to 1GHz

Operating temperature: -5° to 50°C (23° to 122°F)

Storage temperature: -20° to 55°C (-4° to 131°F)

Dimensions: 89 x 52 x 39mm (3.5” x 2.0” x 1.5”)
