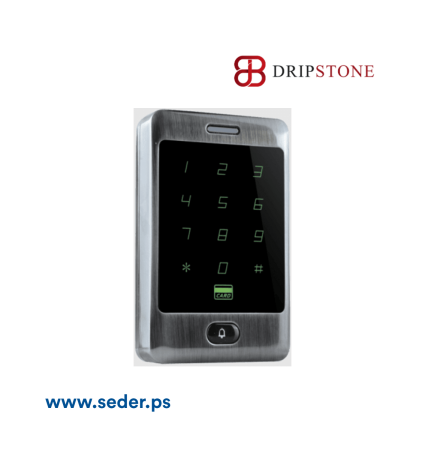

آكسس كنترول لمس تعمل بالرقم و البطاقة 125 كيلوهيرتز

للتعرف على طرق ربط هذا الجهاز مع الاقفال الكهربائية اضغط هنا

Touch panel, door bell button

Metal case with blue backlight

WD 26/34 input/output

Support Card< PIN, Card+PIN

Full programming from the keypad

Humanized tamper alarm function

Can set up a management card

Active and passive lock signal output

Imported double point relay output signal

Contactless for RFID transponder technology

Connection for external release button - EXIT button

Memory capacity: 8000 user cards

Does not need to connect on PC, it can works alone

Power Supply: 12VDC + 12%/1.2A

Unlock relay: 12VDC/2A

Memory capacity: 8000 users, 8000 pcs of cards

Work temperature: -10 ~ 55°C

Relative humidity: Work: 40% ~ 90%

Password: 4 digit PIN code

Card identifying type: EM or compatible

Card reader range: ID type: 5 - 15cm

Add-in Reader Interface: 1WG26 interface

Dimension: 116x70x21mm

RFID Keyfobs

Material: ABS

Frequency: 125KHz

Chip available: 125KHz TK4100

Working distance: 1 ~ 10cm

Working temperature: -25 ~ +75°C

Storage temperature: -15 ~ +45°C

Multi-access and Anti-jamming
