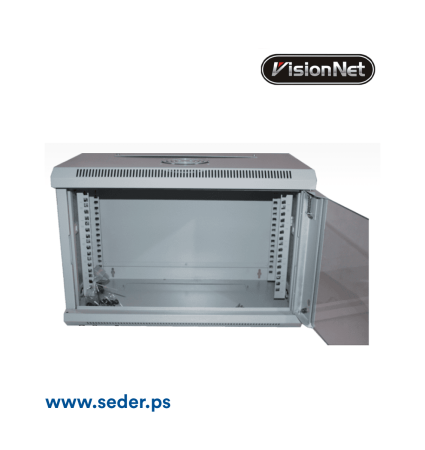

SINGLE SECTION WALL MOUNT CABINET WB-WM-B 6U 550X400

Quick open side doors, easy to install and maintain

RU markings on front & rear mounting rails

Top & bottom wire path

Wall mounted type

Convenient and quick wall mounting

Lockable via keys

Tinted glass front door can be mounted on left or right side

Supplied complete, no assembly required

Material: SPCC quality cold rolled steel

Thickness: Square hole strips 1.5mm, others 1.0-1.2mm

Sizes: Width 550mm,Depth 400mm,height 6U
Surface Finish: Degrease, acid pickling, rust prevention and Parkerizing pure water cleaning, static electricity plastic painting
Color:RAL7035 gray

Two outlet cable entrance on top cover and bottom cover

Front door with bolt lock, side panels removable with fasteners

Complies with ANSI/EIA RS-310-D, IEC297-2, DIN41491; PART1,
DIN41494; PART7, GB/T3047.2-92

Compatible with 19" International Standard and Metrical & ETSI standards
