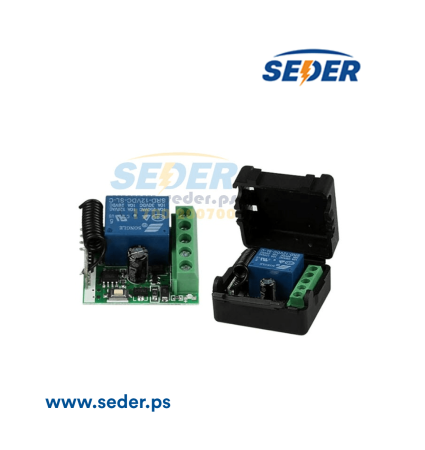

433Mhz AC12V Relay 1CH Universal Receiver

Features:

*Support Multiple Working Mode: Momentary, Toggle, Latching and Time Delay Mode.

*Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).

*Support storing the quantity of remote control: 25Pcs (NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs , the initial remote control will be lost).

*RF Working Mode: Superheterodyne Reception(Modulation Mode: ASK).

*Perfect suitable for remote control of roller shutter door, garage door and other telecommand equipments.

Specifications

Product Type: Single Channel Remote Control Switch

RF Working Mode: Superheterodyne Reception

Modulation Mode: ASK

Working Mode: Momentary, Toggle, Latching and Time Delay Mode.

Input Voltage: DC 10 ~ 14V

RF Frequency: 433MHz

Quiescent Current: 5mA

Receiving Sensitivity: >97dbm

Remote Control Range: >100m (Free Space).

Wired Connection Way: Fixed Wiring Pillar.

Decoding Mode:MCU Software Decoding.

Working Mode:Momentary, Toggle, Interlocked Mode Latching Time delay (5s ,10s ,15s )

Wiring Diagram 1:

+V : 12V + (Input).

- V:  12V - (Input).

NO: Normal Open(Output).

COM:Common(Output).

NC: Normal Close(Output).

Color: Green (PCB Board), Black(Outside Shell)

Circuit Board Size: 3.5 * 3.0 * 1.8cm/ 1.37 * 1.18 * 0.7in

Circuit Board Weight:16.4g/0.57oz
