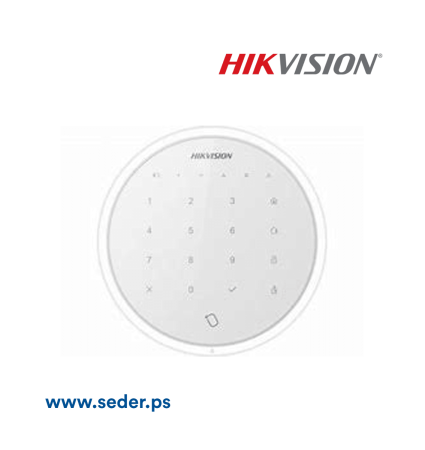

HikVision Wireless keypad DS-PKA-WLM-433

RF 433MHz

Offers reliable protection utilizing two-way wireless technology

Operations: Arming, disarming, alarm clearing, etc.

Supports arming or disarming with card

Patrol card for checking in (different from the arming/disarming card)

Full touch screen design with LED backlight

Communicates up to 800 m (in open area)

Features

Tamper-ProofFront and rear

ProtocolHIK wireless protocol: Access to wireless control panel, twoway communication

IC CardSupports standard IC card swiping

Interface

Serial Port1, reserved

Numeric Key10 keys: 0 to 9

Function Key6 function keys: fire alarm, away arming, stay arming, disarming, delete, and confirm

Indicator3 status indicators: power (green), fault (orange), and alarm (red) 4 partition indicators: armed/disarmed (blue)

RF Transmission

RF Frequency433MHz

RF Modulation2GFSK

RF Power10 dBm

RF Speed10 kbps

RF Range800 m (open area)

Electrical Characteristics

Power Supply3 VDC power input

Battery Type4 AA batteries

Battery Life Span3 years

General

Operation Temperature-10 °C to +55 °C (-4 °F to +122 °F)

Operation Humidity10% to 90% (No condensing)

Dimension(WxHxD)φ131.5 mm (5.2"); height: 23 mm (0.9")

ColorWhite
