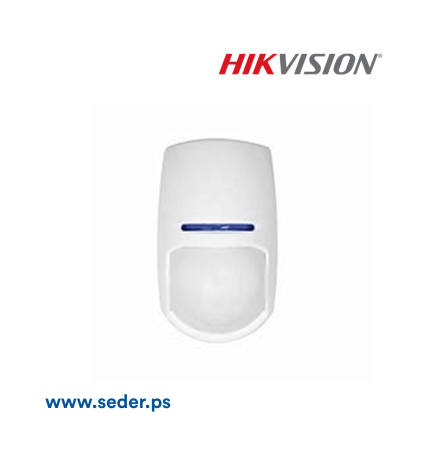

HikVision Wireless internal 10m Dual-technology detector DS-PD2-D10P-W(

Detection range: 10 m x 10 m, 85 degrees

RF 868MHz

Offers reliable protection utilizing two-way wireless technology

Pet immunity up to 24 kg

PIR + microwave detection

Tamper alarm, intruder alarm

Communicates up to 800 m (in open areas)

Detection Performance

Detection Range10m

Detection Angle85°

Velocity Range0.3m/s ~ 3.0m/s

Pet Immunity24kg

Features

Tamper-ProofSupport

RF Transmission

RF Frequency868MHz

RF Range800m (in open space)

Electrical Characteristics

Battery Type2×CR123A, 3.0V

Battery Life Span2 years

General

Operation Temperature-10℃ ~ +40℃

Dimension(WxHxD)117mm*69mm*62mm

Weight135g (without bracket)

Application ScenarioIndoor

ColorWhite

Installation Height1.8 ~ 2.4m

Installation MethodWall mounted or Ceiling mounted

BracketIncluding 1 x Ceiling mounting bracket, 1 x Wall mounting bracket
