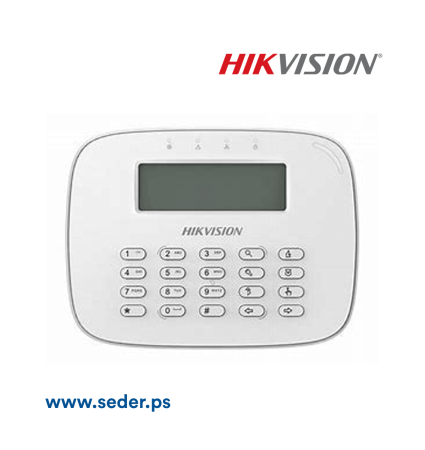

HikVision Wired keypad DS-PK-L

80 × 25 mm LCD screen display

Supports one-touch arm

Supports displaying zone name on LCD screen

Displays real-time system status on LED indicator and LCD screen

Tamper proof

Features

Tamper-ProofCover and wall

Interface

Numeric Key12 (0 1 2 3 4 5 6 7 8 9 * #)

Function Key8 Function Keys (Project, Query, Panic, Bypass, Fire, One-push to arm, Scroll up, Scroll down)

IndicatorFault( Orange ●), Network( Green ●), Alarm( Red ●), Armed/Disarmed( Blue ●), Set( Red/Green ●/●)

Electrical Characteristics

Power SupplyDC 12V

Power Consumption1.8 W

Display

Display Screen 80 × 25 mm LCD screen display

General

Operation Temperature- 10 °C to + 55 °C (14 °F to 131 °F)

Operation Humidity10%～90%

Dimension(WxHxD)164.13mm x 124.11mm x 30.96mm

Weight272g
