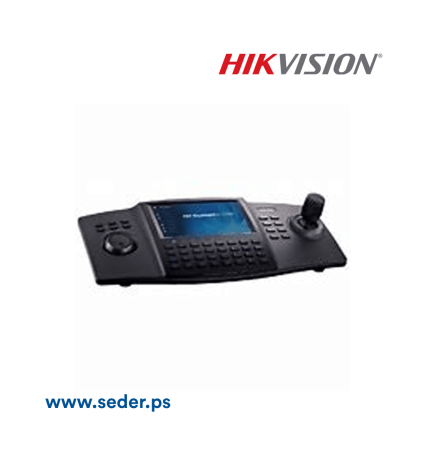

HikVision Network Keyboard DS-1100KI

Divide video wall into regions to manage video wall by region

open/close window, move window, resize window, divide window, and enlarge/narrow sub-window.

Group and macro

Preview camera live image on network keyboard touchscreen

Quickly switch to the previous/next camera

Control speed dome movement via joystick

Play the decoder videos on video wall

Play the video recorder videos on network keyboard touchscreen. Supports clipping and capturing during playback

Add devices via SDK or ONVIF protocol

HikCentral and KPS platforms access

Support up to 32 users (1 administrator and 31 operators) and 4,000 devices

Add/modify/delete cameras in batch

Import/export configuration file

Local Decoding

FormatH.264, H.265, MPEG4

Performance4@1080p

Screen DivisionSingle screen

Input/Output

Display7" TFT LCD at 1024 × 600 resolution

Joystick4D joystick

Audio1 video input and 1 video output of 3.5 mm audio jack. Supports two-way audio

VideoNot supported

USB1 × USB 2.0 interface

Serial Port1 × RS-232, 1 × RS-485

Network1 × 100M/1000M self-adaptive network interface

General

Working Humidity10％ to 90％

Weight2 KG (4.4 lb)

Working Temperature-10 °C to +55 °C (14 °F to 131 °F)

Power Supply Voltage12 VDC

Consumption≤ 15 W

SystemLinux

Dimensions (L × W × H)435 × 193 × 110 mm (17.1" × 7.6" × 4.3")
