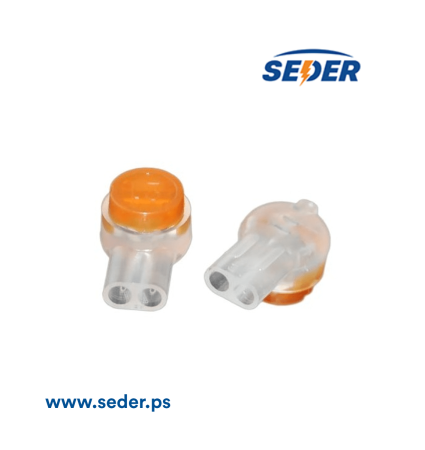

Cord Connection Waterproof Single Moisture-proof Two-wire Crimp Terminal K1

المواصفات

K1 single-pole, two-core wiring sub



Product Description: Main features: two-wire butt (in the case of low voltage and core in 0.4mm - 0.7mm size of the line can be inserted into the terminal sub-hole) using a power sub can be a two-wire connection together, so as to achieve a line transmission signal. The most commonly used where there is a telephone line and the network cable.



Operation Summary:

1, first requires two consecutive wire twisted around

2, holding the double wire 19mm at the end of the lane. Note: Do not damage the insulation layer!

3. Hold the continuation son, and the button down, the double wire along the port inserted in the end

4, with pliers and other tools crimping button



Applicable core diameter: 0.4-0.7 mm, the insulating layer containing the largest diameter 2.0mm.

متوفر
الحالة
GN700820
رقم المنتج
GN700820
الموديل
GN700820
المرجِع
