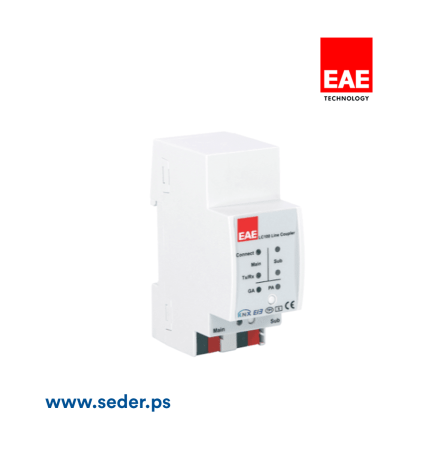

LC 100 KNX LINE COUPLER

LC100 Line Coupler

General Specifications

LC100 is able to filter the traffic according to the installation place in the bus system hierarchy or according to the built in filter tables for group oriented communication

Galvanically isolated KNX bus lines

Bus status (traffic, errors, filter) on each line are accurately shown by six bicolor LEDs

LC100 supports long telegrams and features an configurable "Manual Function" that can be activated by a single button press

Configurable one-button activation for special functions, e.g. transmit all group telegrams (useful during commissioning, automatic reset after a dedicated time, max. 8h)

LC100 can be configured as line repeater for extending KNX lines above standard limits.
