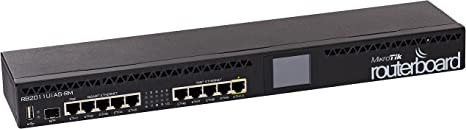

Mikrotik RB2011UiAS-RM

product description
Description: Mikrotik RB2011UiAS-RM

Mikrotik' s RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

RouterBOARD 2011UiAS-RM, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

RouterBOARD 2011UiAS-RM comes with 1U rackmount enclosure, LCD panel and power supply.

Content of delivery:

RB2011UiAS-RM
24V 0.8A power supply
Specifications
Details
Product code RB2011UiAS-RM
Architecture MIPSBE
CPU AR9344
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 214mm x 86mm for PCB
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 128 MB
Storage type NAND
Tested ambient temperature -40°C to 60°C

Powering
Details
PoE in Passive PoE
PoE out Passive PoE
PoE in input Voltage 8-30 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 8-30 V
Max out per port output (input < 30 V) 510 mA
Max total out (A) 510 mA
Max power consumption 6 W
Ethernet
Details
10/100 Ethernet ports 5
10/100/1000 Ethernet ports 5
Fiber
Details
SFP DDMI Yes
SFP ports 1
Peripherals
Details
Serial port RJ45
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 2
Other
Details
PCB temperature monitor Yes
Voltage Monitor Yes
-

Ethernet test results
RB2011UiAS-RMr2 AR9344 1G&100M all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 122.0 1,481.6 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 83.6 1,015.2 86.0 352.3 87.6 44.9
Routing none (fast path) 122.0 1,481.6 210.0 860.2 226.9 116.2
Routing 25 simple queues 100.5 1,220.5 103.9 425.6 106.6 54.6
Routing 25 ip filter rules 56.8 689.8 59.6 244.1 60.5 31.0
All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
