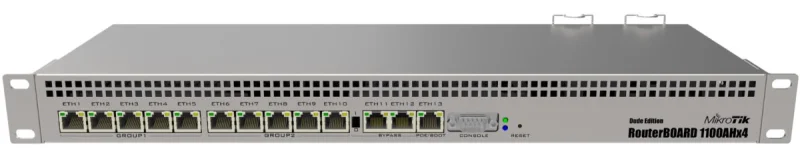

RB1100AHX4 DUDE EDITION

Specifications
Details
Product code RB1100Dx4
Architecture ARM 32bit
CPU AL21400
CPU core count 4
CPU nominal frequency 1.4 GHz
Dimensions 443 x 148 x 44 mm
RouterOS license 6
Operating System RouterOS
Size of RAM 1 GB
Storage size 128 MB
Storage type NAND
MTBF Approximately 200'000 hours at 25C
Tested ambient temperature -40°C to 70°C
IPsec hardware acceleration Yes
Suggested price $385.00
Powering
Details
Number of AC inputs 2
Number of DC inputs 2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage -48, 20-57 V
Max power consumption 33 W
Max power consumption without attachments 25 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 20-57 V
Ethernet
Details
10/100/1000 Ethernet ports 13
Peripherals
Details
Extended storage 60GB M.2 SSD included
Memory card type microSD
Memory Cards 1
SATA ports 2x SATA3
Serial console port RS232
Number of M.2 slots 2
Other
Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes
Certification & Approvals
Details
Certification CE, EAC, ROHS
IP IP20
