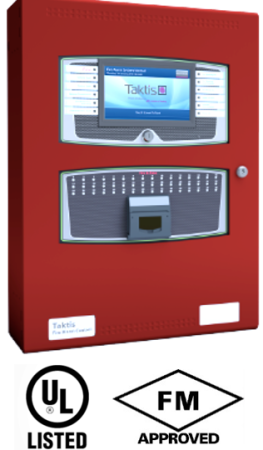

Taktis UL 2-16 Loop Hochiki protocol UL/FM

Two full SLC circuit on board up to 126 detector
access level 2 enable keyswitch
3 programmable inputs and 5 programmable
relay outputs
7 inch, full-color resistive touch screen
4 programmable NACs; Class B or 2 Class A with
internal synchronization
24V-10.25A power supply
10,000 events, 1 second resolution. Filterable
1.5mm mild sheet steel Construction
Eight lines of 40 characters graphic LCD display
Maximum  battery size (standard )  up to 28AH
Maximum  battery size (deep )  up to 40AH
Programming via USB port to PC or memory stick
Compatible with eView Annunciator
Up to 24 programmable soft “function keys”
UL864 (10th edition) Listed and FM Approved
