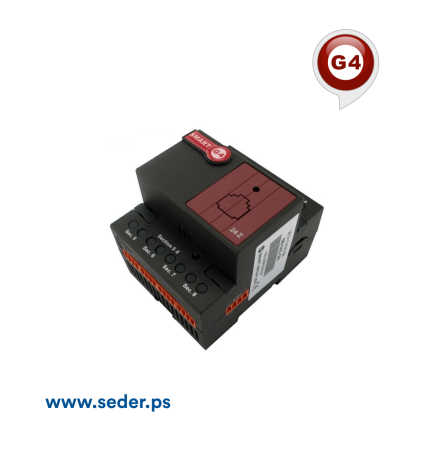

24-Z Dry Contact Input
S-BUS Enabled. 24NO/NC Volt-Free Dry Digital Inputs for Automation Security, Safety, Magnetic Contact Sensors or for Converting Classical Manual Switches into BUS use. (Built in Intelligence and delay Functions)- Small Size can fit behind switch. With Broadcast Enabled, Ready with Firmware USB Upgrade.
Inputs
24-Dry Inputs (Volt Free)
NO/NC:
Internal Assignment Enabled Using software setup
Applications
• Security Applications in connection to: (vibration, UV, magnetic contacts, Panic, Pressure matt, PIR, microwave, Driveway sensors...etc.)
• Safety Applications in connection to: (Gas Leak, Smoke, Pool Guard, Elevator Panic, CO gas, Bathroom Help. etc.)
• Maintenance and Health Applications in connection to: (water Leak detector, water tank low level alert, Filter clogged sensor...etc.)
• Converting Manual Wall Switches into Automation enabled
User Controls
• LED status indicator/channel
• Diagnostic LED+ BROADCAST
Programming
• Advanced Software Configuration & Programming
Compliance
CE Mark EMC
Control IO
1 x Advanced RS485 S-BUS serial port links
Upgrade IO
1 x mini USB port (to connect to special programming board)
Operation Protection
• BUS Rv. Polarity Protection
• BUS Short Circuit Protection
SBUS DC Supply
24VDC with flexible tolerance between 8-32VDC. Flexible ability to add power supply as to be needed any where Power consumption: 12mA
Installation
• universal Mount Ready
Operating Environment
0º to 45ºC ambient temperature 20% to 93% RH
Enclosure material
Polycarbonate
Dimensions & Weight
W 46mm x L 46mm x H 16mm Packed weight 0.06 kg
