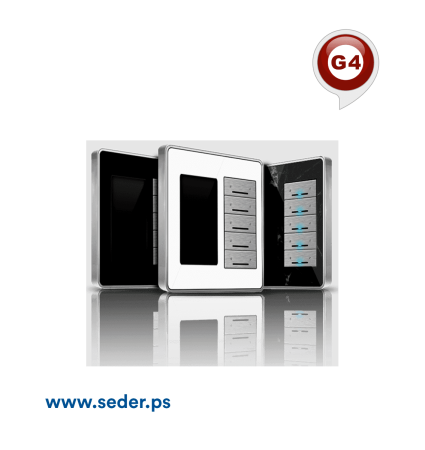

Dynamic Display Panel - DDP
The Dynamic Display Panel must be both Bedside and wall mountable, it must accept menu driven and page driven options. The panel must accept local onsite customization for the following:
o Changing Displayed Language
o Add Picture Icons
o Modify Button Functions.
• The DDP panel must have the following abilities to be activated or deactivated as per hotel needs:
- Lighting
- Scenes
- Service
- HVAC - Music/Media
- Curtains
- Or other Control Needs
• The DDP must have built in thermal couple of thermostat in order to sense the real room temperature. Operation of the thermostat should be intuitive and user friendly. The thermostat shall have the following buttons:
- Button (On/Off)
- Button + /- : Temperature Up/Down
- Button 1,2,3: Fan speed Low, Medium, High
- Buttons Auto, Cool, Heat
• It should also have the following capabilities:
- to work as C/F : Celsius /Fahrenheit.
- Ability to display External temperature.
- Ability to display Time and Date.
- Ability to be calibrated +8-8 degrees.
• Optionally: the DDP operation can be logically configured to operate in conjunction with HVAC2 Unit and the server based on user access Card as following minimum set point scenarios:
“welcome temperature”,
“comfort temperature”,
“maintenance temperature”,
“room vacant” temperature.
• The GRMS should have a digital input Add on Module for a window contact as well and should be able to stop the fan coil in case of an open window. The fan coil should start again once the window is closed. The grace periods within which the fan coil stops and starts should be adjustable centrally.
• Each GRMS and DDP shall be able to control not less than 9 thermostats in case of multi-bedroom suites or apartments. The GRMS supplier should provide the fan coil unit controllers (FCC – HVAC2) in order to provide full standalone functionality of the rooms even in case of fault or offline server issues.
