حساسات حركة نوع نايس ايطالي خاصة للبوابات الكهربائية

للتعرف اكثر عن اليه عمل هذه الخلايا اضغط هنا

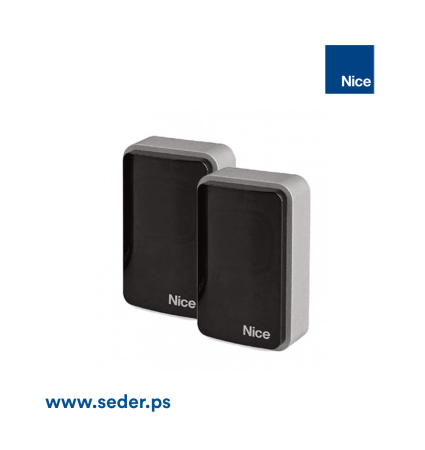

Pair of outdoor photocells fixed 10° Nice EPM Safe: D type device according to specification EN12453 which allows to pick-up obstacles on the optical axis between transmitter (TX) and receiver (RX). Using the fototest function it is possible to achieve class 2 safety fault according to specification EN 954-1. Cutting-edge technologies: antiglare circuit which eliminates possible sunlight interference. Practical: 10° angle of reception. The models EPM, EPMO, EPMA and EPMAO provide for 2 range levels. Resistant and vandal-proof: ABS body resistant to weather conditions.

DATA SHEET

Technical features

Estimated range (m): 15 (30 with jumper + "10" cut)

Power: without jumper 24 Vac / Vdc limits: 18-35 Vdc
