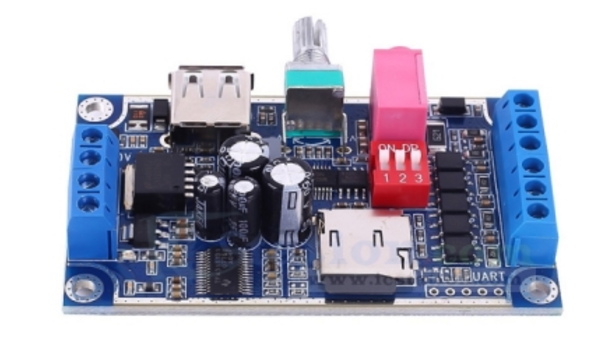

Voice Alarm Recorder

المواصفات

Feature:

 1>. Support MP3, WAV high quality audio files

 2>. Full support for FAT16, FAT32 file system, maximum support for 32GTF card and 32G U disk (product comes with 128GTF card)

 3>. Power supply: DC9-26V wide voltage range

 4>. Power output: maximum 10W speaker

 5>. With volume adjustment potentiometer

 6>.3 digit dial switch to achieve a variety of trigger function selection, 5 IO ports can achieve 29 segments of voice broadcast

 7>. Trigger with optocoupler isolation

 8>. Audio files are played in the order of "0001" and so on.

 9>. Operating Temperature:-20℃~85℃

 10>. Operating Humidity:5%~95%RH

 11>. Module Size:78x50x16mm

متوفر
الحالة
GA700600
رقم المنتج
GA700600
الموديل
E06-223
المرجِع
مرفقات
Data Sheet
