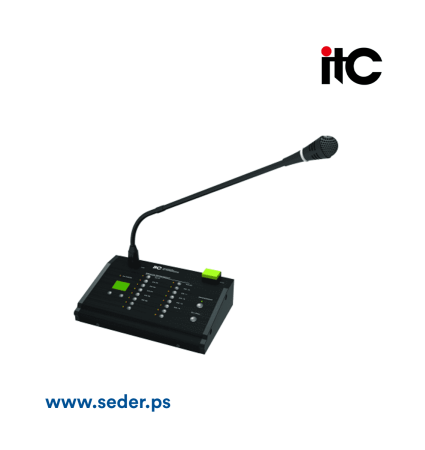

ITC VA-6200RM EVAC System Remote Paging Microphone

Features

* Support 16 zones, group paging button.

* System max support 32 remote paging microphones.

* Microphone support anti-misoperation plug.

* Support line audio input, and input/output volume is adjustable.

* Paging priority can be set by software.

* Support 24 DC power supply.

* Remote MIC/Controller has 2 cascade interfaces, 1 in and 1 out.* Optional paging to the main controller or extension controller.

Back Panel

Connectors

1 Power switch

2 DC voltage input

3 Line Sound source input

4 Output volume adjustment

5 CAN Communication network port

6 Dial code setting:(Upward: Use Down: Close)

Specifications

Product ModelVA-6200RM

line Input Frequency Response80Hz~16KHz

Line Input Sensitivity775mV/10KΩ

Line Input SNR>70dB

MIC SNR>65dB

MIC Frequency Response200Hz~10KHz

Signal Output1V

MIC Sensitivity10mV/600Ω

MICCapacitor Microphone

Dimension (L x W x D)256 x 52 x 149mm

Supply Voltage24V DC

Distortion

Net Weight1.3kg
