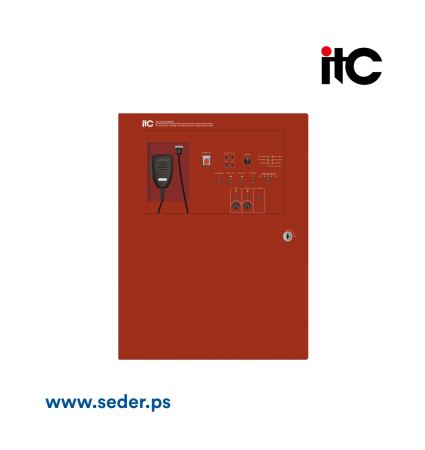

ITC VA-2240WM 2 Zones Voice Evacuation Controller

المواصفات

* Built-in 240W high-efficiency digital power amplifier, integrated 2 power A + B independent dual-speaker loop zone output, each zone has independent LED indicator, independent output control buttons and volume adjustment.

* 4 audio balanced input interfaces for playing any audio source in the zones

* Local emergency PTT microphone input and emergency voice can be configured by PC software to be played in specific zone.

* Automatically detect the working status of each zone loop (fault, normal)

* The 4-channel trigger input/output port can trigger the emergency voice preset by the PC software to the specified zone or the corresponding external power source to the corresponding event warning.

* Support third-party emergency audio input (user-defined emergency audio source)

* Integrated independent EVAC/ALERT voice information player.

* There are online interface for the remote paging microphone and fireman microphone. The connection between each paging station uses standard RJ-45 network port and standard CAT-5 network cable. The voice transmission uses balanced transmission mode for long-distance transmission.

* Controller online interface can be connected to the slave unit, it uses standard RJ-45 network port and standard CAT-5 network cable.

* 1 channel TCP/IP communication interface, supports visual interface operation based on Window platform, and the system status can be automatically synchronized.

* Support DC24V battery backup power supply.

* With power amplifier monitoring function.

* Support PTT recording function, no external equipment required.

* With System fault output, emergency dry contact output and dry contact reset input for emergency statusThe zone output has three-wire and four-wire over-ridding adjustment functions.

* With IP address reset function and impedance calibration function.

* The master-slave unit is integrated, and the device can be used as a controller or a slave unit by setting DIP address, and the maximum of 19 slaves can be simultaneously online.

The system can extend the number of the zones by slave units, it support 40 zones maximum.

Specifications

Model
VA-2240WM

Voltage
~ 220V±20%, 50/60Hz

Fuse specifications
2A slow breaking type

MIC input

Sensitivity
±2.5mV

Frequency response
200Hz~10KHz

Input impedance
1KΩ

Signal to noise ratio >65dB
>65dB

Balanced line input

Sensitivity
±385mV
