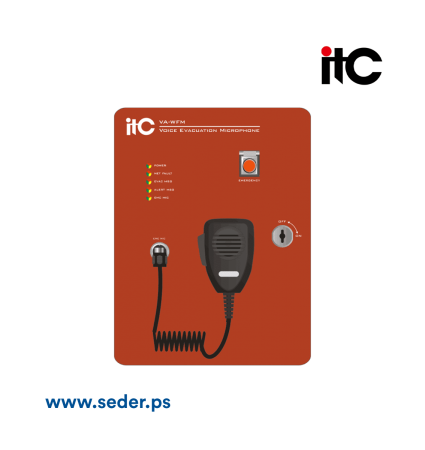

ITC VA-WFM Voice Evacuation Microphone

* Paging to all zones in the system;

* Enter into or exit the emergency mode;

* Support fireman mic recording function;

* Support self detection in paging conflict status;

* Can display the EVAC/ALERT audio source status;

* Same priority of fireman mic and PTT mic;

* Support power supplied by 24V DC and network cable;

* Support max 4pcs fireman mics.

Specifications

Model
VA-WFM

Power supply
Voltage ~ DC 24V battery

Mic input

Sensitivity
5MV±0.5mV

Frequency response
200Hz~10kHz

Input impedance
≧1kΩ

CAN interface
CAN interface of remote mic

Baud rate of 100bps

Support up to 4 fireman mic

Size (L×W×H)
260×200×100mm

Net weight
2.3Kg

Installation
Wall mounted

Color
Grey

Operating temperature
+5℃~ +40℃

Storage temperature
-20℃ ~ +70℃

Relative temperature
<95%
